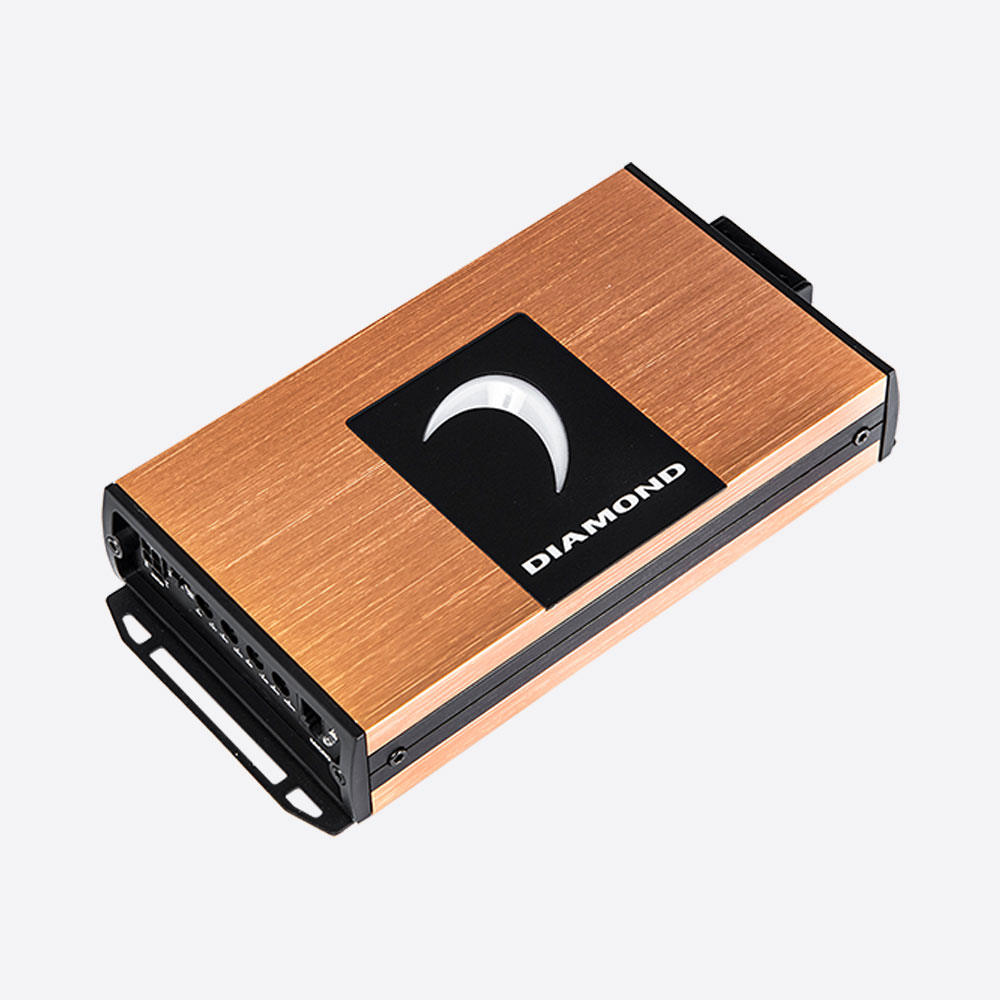

Diamond Audio MICRO 1

300 WRMS 1-Channel Amplifier

Description

RMS Power Rating

  • RMS Power (2Ω): 300W
  • RMS Power (4Ω): 175W
  • Bridged (mono 1Ω): 500W
  • Bridged (mono 2Ω): 300W
  • Bridged (mono 4Ω): 175W

Type

  • Topology: Full Range Class D

Power Supply

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC – 17.0VDC
  • Idle Current: (0.7A)

Distortion

  • THD 4 (1KHx @ 4Ω): 0.5%
  • S/N Ratio (A weighted @1W): -85dBA
  • S/N Ratio (A weighted @FP): -101.1dBA

Input Sensitivity

  • Low Input Level: 200mV – 10.0V
  • High Input Level: N/A

Input Impedance

  • Low Input Level: 20KΩ
  • High Input Level: 20KΩ

Output Stage

  • Output Impedance: 0.011Ω
  • Damping Factor ([email protected]Ω): >250
  • Bandwidth (-3dB): 10Hz – 350Hz

Crossover (-12dB/Oct)

  • Variable High-Pass: N/A
  • Variable Low-Pass: 40Hz – 400Hz
  • Variable Sun-Sonic: 10Hz – 55Hz

Fuse Ratings

  • ATC: 25A

Dimensions

  • Length x Width x Height (Inches): 7.89 x 4.0 x 1.46
  • Length x Width x Height (mm): 200.5 x 103 x 37.2
